TRITAN

TRITAN Bearings & PT Components from Solve

TRITAN has over 25 years of experience producing world-class precision bearings and power transmission components. Manufactured using heat-treated select alloy steel and backed by advanced quality control and testing systems, TRITAN uses the latest technologies to increase the life expectancy and performance of our bearings with careful adherence to lubrication requirements.

Key Industries

Food & Beverage

Aggregates & Mining

Agriculture

Lawn & Garden

Material Handling

Pharmaceuticals

Oil & Gas

TRITAN Products

Radial/Deep Groove Ball Bearings


Grooved raceways on inner and outer rings sustain moderate axial loads in both directions in addition to radial loads. Balls separated by steel cages permit high-speed operation. Constructed from high-quality SAE-52100 chromium bearing steel. Available open, sealed (2RS) or shielded (ZZ), providing high speed operation in a wide variety of applications.


Designed to accommodate axial and radial loads acting simultaneously. Balls separated by high-speed Polyamide cages. Constructed from high-quality SAE-52100 chromium bearing steel. Single Row and Double Row versions available.


Miniature ball bearings are ideal for a wide variety of light-duty instrument and precision applications.


Available sealed (2RS), shielded (ZZ), and open. Also available in stainless steel pre-lubricated with FM222 H1 Food Grade Grease.

Spherical Plain Bearings


Units handle heavy radial loads and bidirectional axial loads at same time. Standard designs utilize carbon chromium steel-on-steel sliding surface, which is hardened, phosphated and treated with Molybdenum Disulfide (MoS2). Others have PTFE-lined steel outer sliding surfaces on chrome-plated balls. Units with ES suffix can be relubricated through annular grooves and oil holes in inner and/or outer rings.


Maintenance-free, low friction units capable of handling radial loads and single direction axial (thrust) loads at same time.


Maintenance-free, low friction units handle radial loads and single direction axial (thrust) loads or combined axial and radial loads.

Roller Bearings


Bearings that utilize two rows of rollers operating in a common sphered outer ring raceway. Provides a self-aligning solution combining a radial bearing and thrust bearing capable of operating even if the shaft and housing are, or become, misaligned under load.


Single row bearings in inch sizes capable of handling large radial loads and axial loads in a single direction. Consists of outer ring, inner ring and roller assembly (tapered rollers within pressed steel cage). Constructed from high-quality SAE-52100 chromium bearing steel.

Mounted Ball Bearing Units

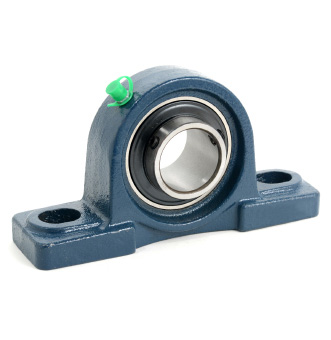

Units feature one-piece cast iron housing, solid base, wide inner ring bearing, dual heavy-duty contact-type seals, steel plate slingers on sides for dust exclusion, full self-alignment, grease fitting for adding lubricant. Set screw units have two set screws 120° apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications. Triple lip seals available on request.



Power Transmission Components


We also offer a full line of sprockets featuring:

  • Carbon steel or stainless steel
  • Hardened teeth
  • Standard and made-to-order sizes


Our full line chain include drive chain, conveyor chain, specialty chain and quality roller chain at a competitive price. Features include:

  • Link plates with increased waist width to combat fatigue
  • Ball burnished to assure maximum resistance to fatigue
  • Link plates and rollers are shot peened, providing greater strength
  • All plates, rollers and pins are heat-treated
  • All chain is run in and pre-stressed to prevent initial elongation and fatigue


TRITAN also offers a full line of sheaves and pulleys. Styles include:

  • AK (A, 3L & 4L belts)
  • BK (B, A, 4L & 5L belts)
  • Bored to size Single & double groove
  • Variable pitch & combination

Agricultural Bearings


Designed for harsh environments, Bearings Limited agricultural products perform in the toughest of applications, from planters, sprayers and shredders, to spreaders, mowers, augers, hay rakes, balers and more. Manufactured in ISO certified plants, these heavy-duty units meet the highest quality standards set by leading agricultural OEMs.


Agricultural bearing with triple lip seals and outer shroud that prevent lubrication loss and protect against moisture and abrasion. Available for round, square and hex bores.


Flange disk units with two heavy gauge pressed steel plates riveted to form a housing, and two rubber O-rings surrounding a triple lip sealed bearing. Includes four mounting holes (square and round). Units can be relubricated.
